Maybe the strings feel too tall to press, or maybe they buzz the moment you dig in. Both problems usually start at the saddle, and the bridge on your guitar decides how you fix it.
A flat-mount electric, a one-piece acoustic, and a locking Floyd Rose each call for a different approach. Pick the wrong one and you can damage parts that aren’t cheap to replace.
This guide walks through all three bridge types in order, then shows you the range a comfortable setup tends to land in. Patient, tiny moves are what keep you from overshooting.
Before you reach for an Allen key, it helps to know what this one adjustment is really doing under your fingers.
What Saddle Height Actually Controls
The saddle height sets your guitar’s action, which is the distance between the strings and the top of the frets. Raise the saddle and the action gets higher, which can reduce fret buzz but makes the strings harder to press down.
Lower the saddle and the action gets lower, which makes the guitar easier to play but risks buzzing if you go too far.
Because saddle height changes the string angle, it also has a small effect on intonation, so it’s worth checking your tuning at the 12th fret once you’re happy with the height.

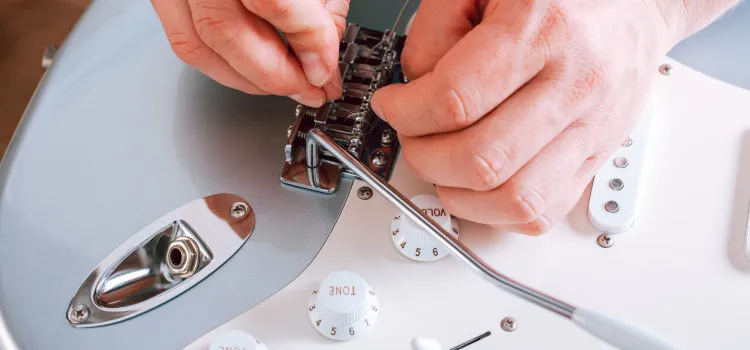

Adjusting Electric Guitar Saddles
For electric guitars, most bridges have individual saddles for each string, and each saddle sits on one or two small height screws (grub screws). To adjust them:
- Find the correct size Allen key (hex wrench) for the height screws on your bridge.
- Turn the screw clockwise to raise the saddle or counterclockwise to lower it.
If a saddle has two screws, turn each one the same amount so the saddle stays level. 3. Make small adjustments, then re-tune and play to check the action and listen for buzzing. 4. Repeat across all six saddles until the action feels even from string to string.
Aim to follow the natural radius of your fretboard, so the saddles for the middle strings usually sit slightly higher than the outer strings.
Adjusting and Lowering Acoustic Guitar Saddles
Do you have an acoustic guitar, acoustic electric, or classical guitar? These use a single one-piece saddle that drops into a slot in the bridge, so you can’t turn a screw to adjust it.
To lower the action, remove the saddle and sand the bottom flat against a piece of sandpaper laid on a hard, level surface. Remove a little material at a time, then drop the saddle back in and check the action before sanding more.
To raise the action, place a thin shim under the saddle in the bridge slot. A strip of hardwood veneer or even a sliver of a business card works for a quick test, though a proper hardwood or bone shim is the better long-term fix.
What Is The Ideal Saddle Height On A Guitar?
Most players agree on a measurement between 1/32 of an inch and a maximum of 3/16 of an inch. However, I like to check the guitar manufacturer’s recommendations for the specific guitar I’m working on and go with that.
Lower action within that range suits fast, light playing, while slightly higher action gives more room for hard strumming and heavier picking without buzz. I’d recommend getting a full professional intonation setup on your guitar after these adjustments so the saddle height, neck relief, and intonation all work together.
Adjusting Saddle Height On Guitars With A Floyd Rose
Guitars with a Floyd Rose require a slightly different procedure because the saddles are clamped down rather than sitting on free-turning screws:
- Detune the affected string or strings so there’s no tension on the saddle.
- Loosen the saddle’s locking screw or mounting screw so the saddle can move.
- Slide a thin shim under the saddle to raise it, or remove an existing shim to lower it.
Floyd Rose saddles are designed to be shimmed rather than screwed up and down. 4. Re-tighten the saddle firmly, then re-tune and check the action and intonation.
Because a Floyd Rose is a balanced floating bridge, changing saddle height can shift the whole bridge angle, so expect to re-balance the tremolo springs if you make larger changes.
Frequently Asked Questions
Will lowering the saddle cause fret buzz?
It can if you lower it too far. Buzzing happens when the strings sit close enough to the frets to rattle against them when played.
Lower the saddle in small steps and test for buzz after each change. If buzz appears, raise the saddle slightly or check your neck relief, since a back-bowed neck can buzz even with a correct saddle height.
Do I need to adjust intonation after changing saddle height?
Usually yes. Changing the saddle height alters the string’s break angle and length, which shifts intonation.
After you set the height, check each string at the 12th fret with a tuner and adjust the saddle position (or get a setup) if the fretted note is sharp or flat compared to the harmonic.
Can I raise an acoustic saddle without buying a new one?
Yes. You can place a thin shim under the existing saddle in the bridge slot to raise the action.
A hardwood or bone shim is ideal, but you only need a new saddle if your current one has been sanded too low or is cracked, grooved, or made of a material you want to upgrade.
What tools do I need to adjust saddle height?
For electric guitars you mainly need the correct Allen keys for the bridge height screws and a tuner. For acoustic guitars you need fine sandpaper, a flat surface, and shim material.
For a Floyd Rose you need the bridge’s locking tools plus shims. A small ruler or feeler gauge helps you measure the action accurately on any guitar.
Final Thoughts
Adjusting saddle height is one of the most effective ways to dial in how your guitar plays, and the method comes down to your bridge type. Electric saddles raise and lower on their height screws, acoustic saddles are sanded down or shimmed up, and Floyd Rose saddles are shimmed and re-clamped.
Whichever guitar you own, work in small increments, re-tune between changes, and aim for the 1/32 to 3/16 inch range while respecting your manufacturer’s spec. Once the action feels right, finish with an intonation check or a full setup so every part of the guitar works together.
